Model: | SINOMTP-FB10 | Power source: | Battery |
---|---|---|---|
Rated load capacity: | 1000kg | Load centre: | 500mm |
Wheelbase: | 1380mm | Drive motor: | 8/8kw |
Điểm nổi bật: | forklift loading truck,forklift pallet truck |

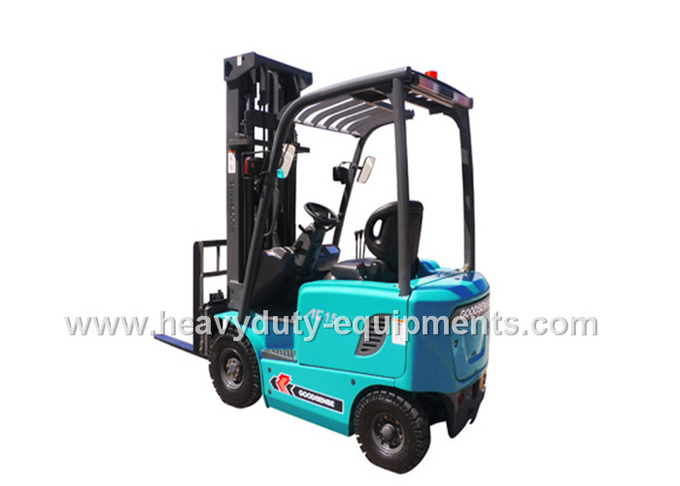

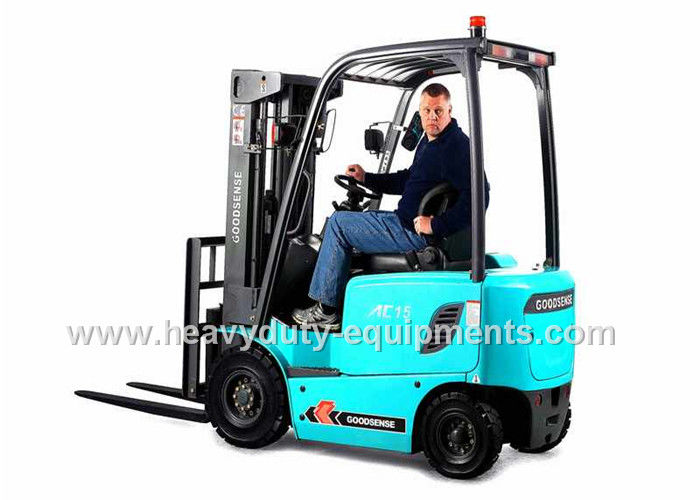

SINOMTP forklift uses adjustable steering wheel and economical engines
Specification:
Product model | SINOMTP-FB10 | Overhead Guard Height(mm) | 2170 |
Power source | Battery | Wheelbase(mm) | 1380 |
Rated load capacity(kg) | 1000 | Overall length(with forks)(mm) | 3070 |
Load centre(mm) | 500 | Gradeability(Laden)(%) | 15 |
Lift height(mm) | 3000 | Front Tire | 6.50-10-10PR |
Fork size (L×W×T)(mm) | 920x120x35 | Rear Tire | 5.00-8-10PR |
Overall Length(Length to fork face)(mm) | 2150 | Backrest height(from upper fork face)(mm) | 800 |
Overall Width(mm) | 1090 | Free lift(mm) | 115 |
Mast Lowered Height(mm) | 1995 | Drive motor(kw) | 8/8 |
Mast Extended Height(mm) | 3945 | Lift motor(kw) | 10/10 |
Fork carriage tilt(F/R)( °) | 6°/12° |
Description:
Our production range for internal-combustion counter-balance forklift is from 1T-33T. Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard soft pipes which greatly reduced the pipeline pressure.
Application:
This kind of forklift used for loading, unloading and stock filing of containers as well as other packages.
Advantage:
1. Spacious workplace: Ample leg room helps to provide a relaxed, working environment, keeping the operator relaxed and focused throughout the working day for maximum productivity.
2. Adjustable Steering wheel and safety seat.
3. Humanized right-side hydraulic operation handle and emergency power-off button.
4. High strength solid steel Gantry fork.
