| Model: | XG550 | Rated load: | 5000 kg |
|---|---|---|---|
| Gradeability: | 20% | Deadweight: | 8300kg |
| Overall Dimensions: | 4620x1990x2495mm | Wheel base: | 2200mm |
| Điểm nổi bật: | forklift loading truck,forklift pallet truck |
||

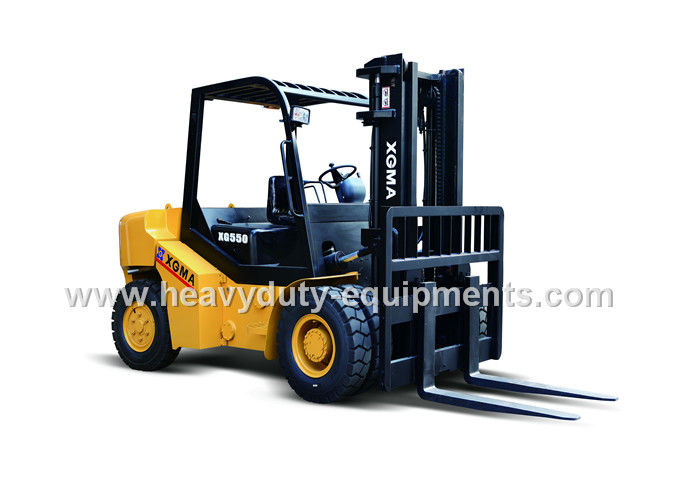

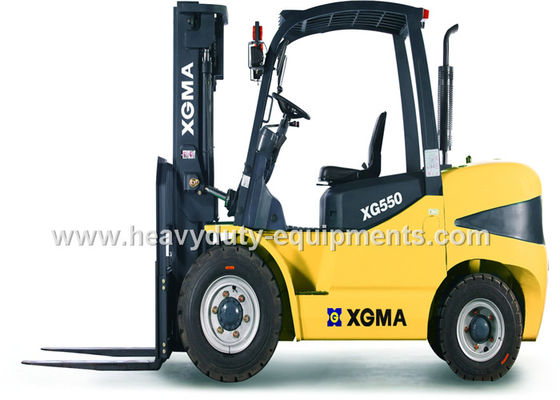

Sinomtp FY30 Gasoline / LPG Forklift Steering Axle With 3000mm Lift Height
Specifications:
| Model | XG550 | Height of Overhead Guard(mm) | 2230 |
| Rated lifting capacity (kg) | 5000 | Maximum Lifting Height(mm) | 3000 |
| Deadweight (kg) | 8300 | Free Lifting Height(mm) | 160 |
| Turning radius (mm) | 1200x150x60 | Minimum Ground Clearance(mm) | 160 |
| L x W x H(mm) | 3400 | Track (Front/rear)(mm) | 1485/1500 |
| Overall Dimensions (LxBxH) (mm) | 4620x1990x2495 | Front tyre | 4x8.25-15-14PR |
| Maximum Travel Speed (km/h) | 26 | Rear tyre | 2x8.25-15-14PR |
| Gradeability (%) | 20 | Engine Model | LR4108G8 |
| Load Center Distance(mm) | 600 | Engine Rated Power/Speed( kw/r • p • m) | 64/2400 |
| Tilt Angle of Mast (F/B) (°) | 6°/12° | Engine Max. Torque/Speed (N • m/r • p • m) | 292/1500-1600 |
| Wheelbase (mm) | 2200 |
Fuel Consumption Rate(g/kw.h)
|
242 |
Description:
Our 5T-6T forklift is designed with recent advanced technologies and evaluations particularly to upgrade the performance and efficiency.
Application:
This kind of forklift used for loading, unloading and stock filing of containers as well as other packages.
Advantage:
1. Steering axle: It has less torque hydraulic steering gear with transverse cylinder ensuring steering flexibility, maintenance simplicity and highly reliable.
2. The transmission modes consist of mechanical transmission with synchronizer, convenient operation, little impact on the gear switch and absolutely free from clutch shifting friction and hydraulic transmission
3. Designed with recent advanced technologies and evaluations particularly to upgrade the performance and efficiency.
4. High quality transmission components match the hydraulic system effectively. The forklift is more efficient and energy-saving as a result.
