Model: | SD22 | Engine: | Cummins NT855-C280S10 |
---|---|---|---|
Operating weight (Ripper not included): | 24.6t | L×W×H (Ripper not included): | 5750×4200×3395mm |
Width of track shoe: | 660mm | Track gauge: | 2000mm |
Điểm nổi bật: | shantui construction machinery,dozer construction equipment |

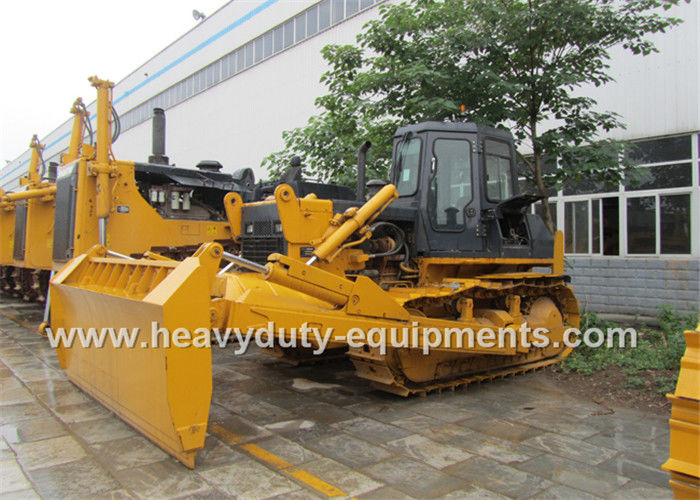

Shantui bulldozer SD22C equipped with 9m3 dozing capacity ripper optional
Specification:
ITEM | SD22C | Engine | Cummins NT855-C280S10 |
L×W×H (Ripper not included) | 5750×4200×3395mm | Ripping depth of ripper | Single ripper 695mm |
Operating weight (Ripper not included) | 24.6t | Three-shank ripper 666mm | |
Rated power | 162/1800kW/rpm | Lifting height of ripper | Single ripper515mm/Three-shank ripper 555mm |
Gradeability | 30° | Number of carriers (each side) | 2 |
Blade type | Coal blade | Number of track rollers (each side) | 6 |
Blade width | 4200×1350mm | Number of track shoes (each side) | 38 |
Width of track shoe | 660mm | ||
Track gauge | 2000mm | ||
Ground length and ground pressure | 2730-0.066mm/MPa | ||
Dozing capacity | 9m3 | Pitch | 216mm |
Forward speed | 0–3.6km/h | ||
0–6.5km/h | |||
0–11.2km/h | |||
Ma× drop below ground of blade | 540 mm | Reverse speed | 0–4.3km/h |
Lift height of blade | 1210 mm | 0–7.7km/h | |
Ripper type | Single ripper Three-shank ripper | 0–13.2km/h |
Description:
The SD22C coal bulldozer is a modified form of the SD22, featuring advanced performance, high reliability, low fuel consumption and convenient maintenance.
Advantage:
1. The SD22C has a high-capacity coal-dozing blade, and is equipped with an engine intake pre-filtering device, helping adapt it to transferring, paving and stacking operations often performed in coal mines and electricity coal yards.
2. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life.
