Thông tin chi tiết sản phẩm:
Thanh toán:
|
Operating weight (Ripper not included): | 38T | Engine: | Cummins NT855-C360S10 |
---|---|---|---|
Engine power: | 235kw | L×W×H (Ripper not included): | 6880×4130×3640mm |
Blade width: | 4130x1590 mm | Dozing capacity: | 10m3 |
Max drop below ground of blade: | 560mm | ||
Điểm nổi bật: | shantui construction machinery,dozer construction equipment |

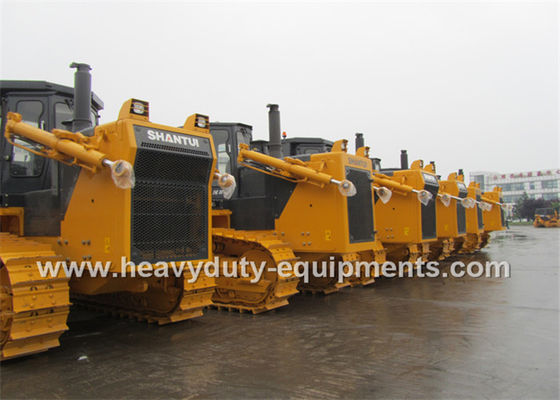

High Performance Crawler Bulldozer 10M3 Blade Volume 30° Gradeability
ITEM | SD32W | Engine | Cummins NTA855-C360S10 |
L×W×H (Ripper not included) | 6880×4130×3640mm | Ripping depth of ripper | Single ripper 1250mm |
Operating weight (Ripper not included) | 38t | Three-shank ripper 842mm | |
Rated power | 235/2000kW/rpm | Lifting height of ripper |
Single ripper955mm Three-shank ripper 883mm |
Gradeability | 30° | Number of carriers (each side) | 2 |
Blade type | Straight tilt blade | Number of track rollers (each side) | 7 |
Blade width | 4130x1590 mm | Number of track shoes (each side) | 41 |
Width of track shoe | 560mm | ||
Track gauge | 2140mm | ||
Ground length and ground pressure | 3150-0.105mm/MPa | ||
Dozing capacity | 10m3 | Pitch | 228.6mm |
Forward speed | 0–3.6km/h | ||
0–6.6km/h | |||
0–11.5km/h | |||
Max drop below ground of blade | 560 mm | Reverse speed | 0–4.4km/h |
Lift height of blade | 1560 mm | 0–7.8km/h | |
Ripper type |
Single ripper Three-shank ripper |
0–13.5km/h |
Description:
SD32W rock bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of severe heavy-load working conditions, such as decomposed rock and frozen earth.
Advantages:
●This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.
●The rock bulldozer is equipped with special tracks and the high strength wear-resistant blade and push rod to remarkably improve the wear resistance and especially adapt to the heavy-duty conditions such as coarse sand, stone, decomposed lithosphere, and frozen earth.
Application:
Mining conditions (such as coarse sand, stone, and decomposed rock) and severe heavy-duty working conditions (such as frozen earth).
