Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Type: | ZSW Vibrating Feeder | Model: | ZSW590X110 |
|---|---|---|---|
| Tank Dimensions (mm): | 5900X1100 | Max. Feed Size (mm): | 630 |
| Feed Capacity (t/h): | 350~500 | Motor Power (kW): | 22 |
| Capacity: | 96~560t/h | ||
| Điểm nổi bật: | mining industry equipment,mining safety equipment |
||

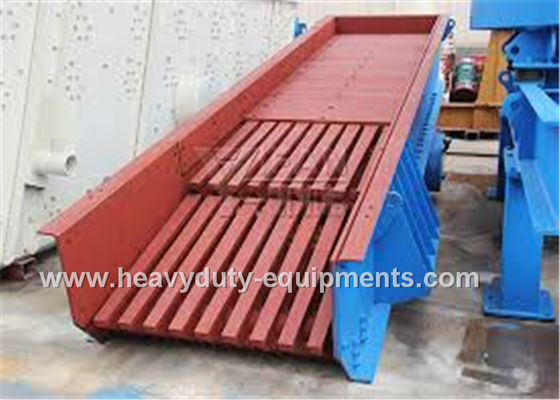

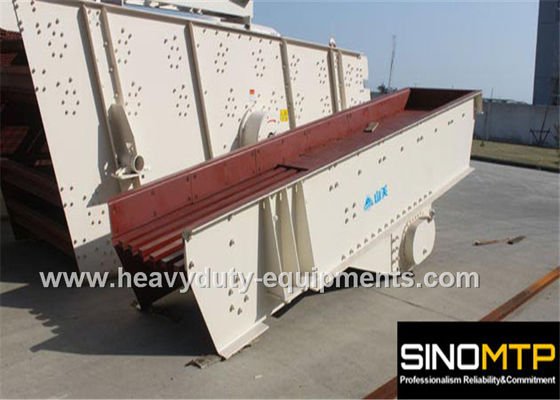

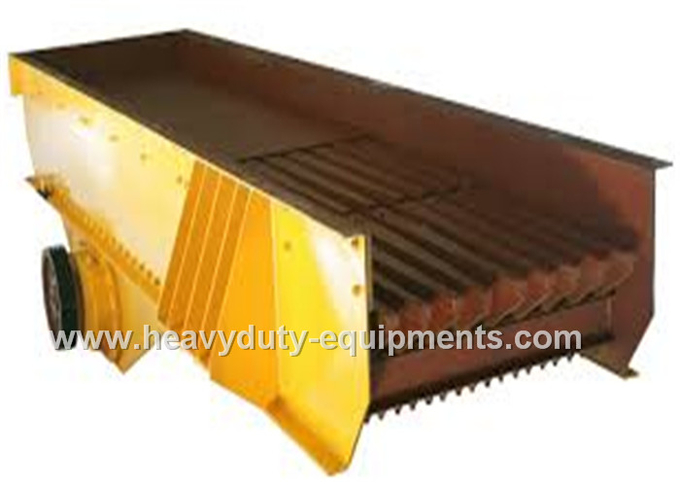

ZSW Industrial Mining Equipment Linear Vibratory Feeder 350T ~ 500T / D With Rough Screening Function
Specification:
| Model | ZSW590X110 |
| Tank Dimensions (mm) | 5900X1100 |
| Max. Feed Size (mm) | 630 |
| Feed Capacity (t/h) | 350~500 |
| Rotating Speed of Eccentric Shaft (r/min) | 800 |
| Motor Power (kW) | 22 |
| Weight (kg) | 6130 |
| Capacity | 96~560t/h |
Description:
A mechanical vibrating feeding equipment with rough screening function.
1. Baseboard of feeding tank adopts “Blind plate + screen” to pre-screen the small block materials
2. Double eccentric shaft vibrator
3.Stable operation, reliable work, long service life, continuous and feeding for crushing, rough screening.
4.It is widely used in mineral processing, building materials, silicate and chemical industry etc.
1.The vibration exciter is composed of two eccentric shafts with particular position. The large linear vibration force produced by motor and the rotation of two eccentric shafts vibrates the machine.
2.The materials are sliding and thrown so that it could move on. When the materials pass the screen bars, the small ore falls through the clearance of screen bars.
