Thông tin chi tiết sản phẩm:
Thanh toán:
|
Model: | SD16F | Engine: | Weichai WD10G178E25 |
---|---|---|---|
Operating weight (Ripper not included): | 17.5t | Dozing capacity: | Straight tilt blade 4.5m3 |
Max drop below ground of blade: | 540 mm | Lift height of blade: | 1095 mm |
Điểm nổi bật: | shantui construction machinery,heavy equipment bulldozer |

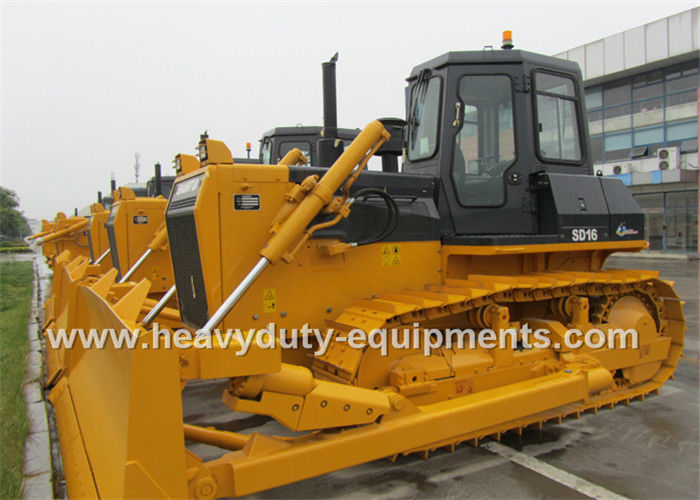

30° Gradeability Crawler Bulldozer Earth Movers Equipment 1095 mm Blade Lift Height
Specification:
ITEM | SD16F | Engine | Weichai WD10G178E25 |
L×W×H (Ripper not included) | 5345×3388×3032mm | Ripping depth of ripper | Three-shank ripper 572mm |
Operating weight (Ripper not included) | 17.5t | ||
Rated power | 120/1850kW/rpm | Lifting height of ripper | Three-shank ripper 592mm |
Gradeability | 30° | Number of carriers (each side) | 2 |
Blade type | Straight tilt blade | Number of track rollers (each side) | 7 |
Blade width | Straight tilt blade 3388×1149mm | Number of track shoes (each side) | 39 |
Width of track shoe | 560mm | ||
Track gauge | 1880mm | ||
Ground length and ground pressure | 3388×1149mm/MPa | ||
Dozing capacity | Straight tilt blade 4.5m3 | Pitch | 203.2mm |
Forward speed | 0–3.29km/h | ||
0–5.82km/h | |||
0–9.63km/h | |||
Max drop below ground of blade | 540 mm | Reverse speed | 0–4.28km/h |
Lift height of blade | 1095 mm | 0–7.59km/h | |
Ripper type | Three-shank ripper |
Description:
The SD16F forest bulldozer has been developed for operation in forests.
Advantage:
The SD16F is equipped with a hydraulic drive system with hydraulic control technology, a front-extending ROPS canopy, and an advanced structure, providing reliable performance and convenient and flexible operation, and easily adapting it to operations in the forest. The sealed shock-absorbing cab features broad visual field and reduces the interior noise to achieve a comfortable driving environment.
