Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Model: | SR18 | Engine model: | Cummins 6BT5.9-C152 |
|---|---|---|---|
| Total weight(kg): | 16000/16500 | High vibration amplitude: | 1.8/1.5 |
| Rated power (kW): | 132 | Low vibration amplitude: | 0.95/0.8 |
| Điểm nổi bật: | road construction machinery,road machinery equipment |
||

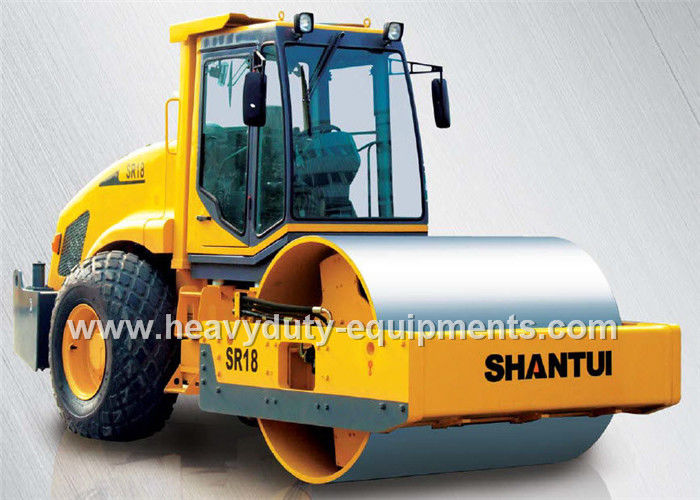

Shantui Full Hydraulic Road Roller SR18 with Operating weight 18000kg air condition cabin
Specification:
| Length × width × height (mm) | 6093×2450×3232 | Total weight(kg) | 18050/18500 |
| Front wheel weight (kg) | 11350/11850 | Theoretical gradeability (%) | 45 |
| Vibratory drum width (mm) | 2140 | Static linear load (N/cm) | 530/554 |
| High vibration amplitude | 1.8/1.5 | Low vibration amplitude | 0.95/0.8 |
| Vibration frequency (high/low) (Hz) | 33/29 | Centrifugal force (high/low) (kN) | 310/215 |
| Engine model | Cummins 6BTA5.9-C180 | Rated power (kW) | 132 |
Description:
SR18 full-hydraulic single-drum vibratory road roller incorporates double traveling drive system and high-span centrifugal force and the compacting scheme can be customized for different density specifications. This product is applicable for compacting various non-clayed soils and concretes and is an ideal machine for various industrial sites and infrastructure projects.
Advantage:
1. The single gearshift joystick can effectively improve the working efficiency of the operator and relieve the fatigue.
2. The imported comfortable and firm seat adjustable in longitudinal direction is equipped with the left and right foldable armrests and the retractable seat belt.
3. The cab is equipped with air conditioning system and the rubber damper design to isolate the operator from the vibration source to remarkably relieve the working strength.
4. The double traveling drive system provides power to both front drum and rear axle, with four speeds at your choice, of which the low speed is suitable for the vibratory compacting and climbing and the high speed can enable the rapid transfer and large-range movement of the machine.
