| Engine: | Shangchai SC11CB240.1G2B1 | Bucket Capacity ( m3): | 4 |
|---|---|---|---|
| Rated Load (kg): | 6000 | Cycle Time (s): | ≤10.5 |
| Max Breakout Force (KN): | 175 | Cooling/Heating System: | Air Conditioner |
| Điểm nổi bật: | Wheel Loader equipment,loader construction equipment |
||

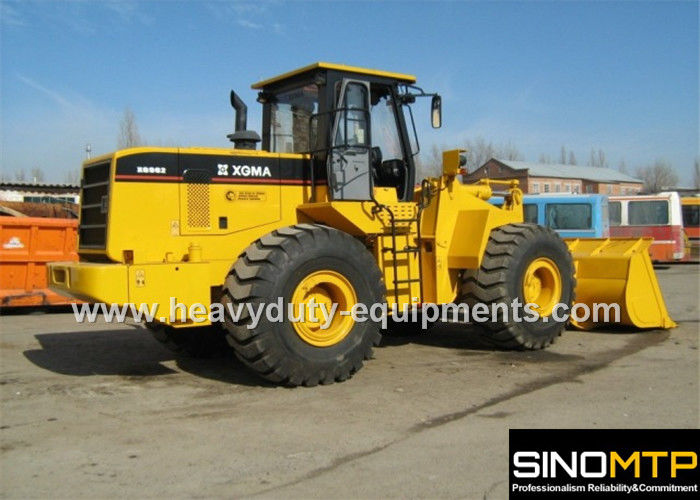

Wheeled Front End Loader 4M³ Bucket , 175kN Breakout Force Payloader Machine
| Item | XG962H | Engine |
Shangchai SC11CB240.1G2B1 |
| Max. Torque(N.m) | ≥1000 | Bucket Capacity ( m3) | 4 |
| Max. Gradeability (°) | 28-30 | Rated Load (kg) | 6000 |
| Dump reach (mm) | ≥1330 | Dumping clearance at full lift (mm) | ≥3340 |
| Working Arm | Standard | Cycle Time (s) | ≤10.5 |
| Lifting time of lift arm (s) | ≤6.5 | Min Turning Radius (mm) | 7470 |
|
Discharge angle (°) |
≤45 | Max Breakout Force (KN) | 175 |
| Cab | Standard | Dimension (L*W*H) (mm) | 8820*3145*3465 |
| Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 4850 |
| Quick Coupler | Yes | Attachment | Optional |
Description:
With the detachable seal ring with the patented technology for upper and lower pins of the bucket, the hinge pin can be effectively protected; its service life can be extended, and the maintenance and replacement can be convenient.
Advantage:
1. ZF WG200 electro hydraulic control transmission features advanced technology; high reliability, and high transmission efficiency.
2. Soundproof, heat-insulated, and damping cab can bring wide driving space and good field of vision with safe glass passing the 3C certification, and the flame-resistant trim.
3. Z-type connecting rod features large breakout force and high working efficiency.
4. Several kinds of working devices and buckets are available to meet the requirements of different users, e.g. Rock bucket, enlarged bucket, flat sand bucket, log grapple, grass grapple, coupling fork.
Application:
Wheel loader is mainly used in mine engineering of shoveling and loading the ore.
