Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Model: | XG525-DT5 | Rated load: | 2500 kg |
|---|---|---|---|
| Power type: | Diesel | Deadweight: | 3765kg |
| Fork (L×W×H): | 1070x122x40mm | Wheel base: | 1650L |
| Điểm nổi bật: | forklift loading truck,forklift lift truck |
||

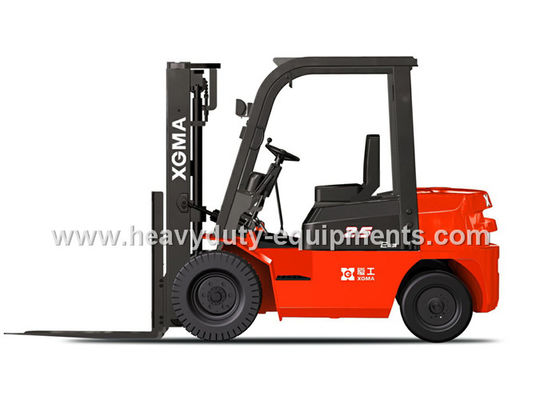

Diesel Power Type Industrial Forklift Truck Energy Saving With Safety Alarm Light
Specifications:
| Product | Forklift | Min. Turning radius (R)(mm) | 2260 |
| Model | XG525-DT5 | Min. ground clearance (H3)(mm) | 110 |
| Power type | Diesel | Max. Running speed(km/h) | 20 |
| Rated load(kg) | 2500 | Lifting speed (full load)(mm/s) | 530 |
| Load centers distance(mm) | 500 | Max. Traction force(kN) | 15 |
| Lifting height(mm) | 3000 | Max. Gradeability(°) | 20 |
| Free lifting height(mm) | 140 | Deadweight (kg) | 3765 |
| Tilt Angle of Mast(α/β) | 6/12 | Front wheel | 7.00-12-12PR |
| Total length (L) | 3650 | Rear wheel | 6.00-9-10PR |
| Total width (W) | 1155 | Wheel track (F/R) (W1/W2) (mm) | 965/980 |
| Fork (L×W×H) | 1070x122x40mm | Engine Model | C490BPG |
| Load center distance (F/R)(mm) | 475/485 | Engine Rated power / speed (kW/r.p.m) | 40/2650 |
| Wheel base (L) | 1650 | Engine Max. torque / speed (N.w/r.p.m) | 160/1800-2000 |
Description :
The physical design is much lighter but with higher strength less complications in transportation either alone or by other trucks. If being equipped with professional gantry, our forklift can be used for loading, unloading and stock filing of containers as well as other packages.
Application:
This kind of forklift used for loading, unloading and stock filing of containers as well as other packages.
Advantage :
1. Developed based on international and domestically-manufactured instrument panel including safety alarm light; all control pedals and levers have human-interface engineering requirements.
2. Well defined and high powered engines with pump diesel engine with direct injection and imported Japanese ISUZU C240engine.
3. The performance of the engine are tremendous such as easy start, low fuel consumption, horsepower, higher power reserve coefficient and these engine built-up is in strict conformity with national and international emission standards for new models/ similar models.
4. A high quality and high stiffness integral GRP hood. Has greater performance in sound proofing and effective heat insulation effects.
