SDLG LG938L Wheel Loader Dalian Deutz Engine 97kw With 3t Rated Loading Capacity

Trung Quốc SDLG LG938L Wheel Loader Dalian Deutz Engine 97kw With 3t Rated Loading Capacity nhà cung cấp
SDLG LG938L Wheel Loader Dalian Deutz Engine 97kw With 3t Rated Loading Capacity nhà cung cấp SDLG LG938L Wheel Loader Dalian Deutz Engine 97kw With 3t Rated Loading Capacity nhà cung cấp SDLG LG938L Wheel Loader Dalian Deutz Engine 97kw With 3t Rated Loading Capacity nhà cung cấp SDLG LG938L Wheel Loader Dalian Deutz Engine 97kw With 3t Rated Loading Capacity nhà cung cấp

Hình ảnh lớn :  SDLG LG938L Wheel Loader Dalian Deutz Engine 97kw With 3t Rated Loading Capacity

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: SDLG
Chứng nhận: ISO/CCC
Model Number: LG938L

Thanh toán:

Minimum Order Quantity: 1
Giá bán: Negotiation
Packaging Details: Nude packing
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 100 units/month
Tiếp xúc
Chi tiết sản phẩm
Model: LG938L Engine: BF6M2102
Bucket Capacity: 1.8 m3 Rated Load: 3000 kg
Control Valve: 3 Valve Operating Weight: 10700 kg
Điểm nổi bật:

Wheel Loader equipment

,

loader construction equipment

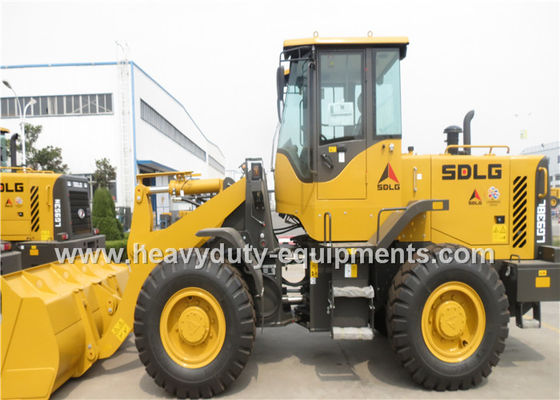

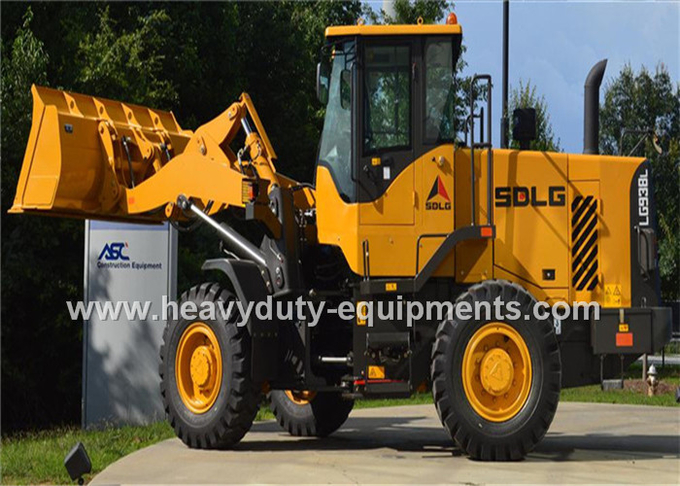

SDLG LG938L Wheel Loader Dalian Deutz Engine 97kw With 3t Rated Loading Capacity



Specification:



Item LG938L Engine DEUTZ 97KW
Transmission ZF 4WG158+Forward IV/Reverse III

Bucket Capacity

( m3)

 1.8
Axle SDLG A507A Rated Load (kg) 3000
Hydraulic System Pilot Control Max Dumping Height (mm) 3278
Working Arm Standard Cycle Time (s) ≤10.34
Control Valve 3 Valve Min Steering Radius (mm) 6070
Brake System Dual Brake Petal Max Breakout Force (KN) ≥92
Cab Standard Dimension (L*W*H) (mm) 7450*2520*3234
Cooling/Heating System Air Conditioner Operating Weight (kg) 10700
Quick Coupler Yes Attachment Optional



Description:

LG938L is a high-end loader for loading and unloading loose materials, with reliability and multiple purpose, and is widely used in building site, small mining, aggregate plant and municipal construction and etc.



Advantages:

  • It is equipped with the DEUTZ engine, imported with original packing from Germany, meeting the requirements
  • The cooling system adopts radiator with independent cooling and double-row parallel structure, optimized terminal insulation design for heat emission compartment and hydraulic motor-driven fan.
  • YD13 electric-liquid shift transmission case is used, with four front gear positions and three rear gear positions, high transmission efficiency and is also comfort to operate.
  • The entire machine uses special NVH technique of SDLG and three-stage damping system, new damping seat better damping performance, which makes it comfort to operate for driver.



Application:

Wheel loader is mainly used in construction project and road construction for shoveling and loading.

SDLG LG938L Wheel Loader Dalian Deutz Engine 97kw With 3t Rated Loading CapacitySDLG LG938L Wheel Loader Dalian Deutz Engine 97kw With 3t Rated Loading Capacity
