| Name: | flat bottom type bucket | Code: | 1690100067 |
|---|---|---|---|
| Attachment weight: | 1336 kg | Operating weight: | 16400 kg |
| Điểm nổi bật: | construction equipment parts,heavy equipment parts |
||

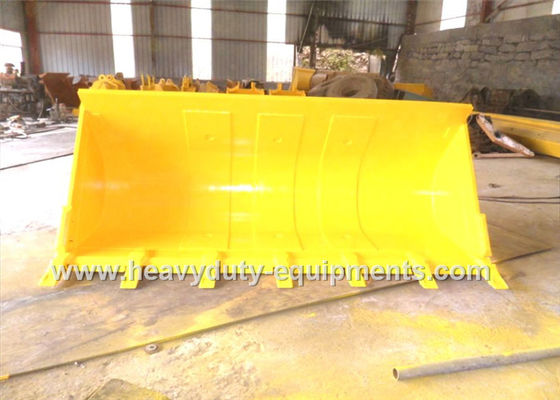

flat bottom type bucket with 3.0m3 capacity and 6705mm min.steering radius
Specification:
| Name |
flat bottom type bucket |
Dumping distance (mm) |
1190 |
| Code | 1690100067 |
Min.steering radius (attachment)(mm) |
6705 |
| Bucket capacity (m3) | 2.8 | Overall dimension of WL (LxWxH) (mm) | 7663x3024x3349 |
| Attachment weight (kg) | 1336 |
Min.steering radius (tyre) (mm) |
5765 |
|
Attachment dimension (LxWxH) (mm) |
3024x1516x1302 |
Max.breakour force (kN) |
≥160 |
| Rated load (t) | 5.0 | Operating weight (kg) | 16400 |
| Max.dumping heght (mm) | 3070 | ||
| Recommended model of Wheel loder | LG952H | ||
Application:
Bucket (flat bottom), mainly used in loading bulk materials, and ore, soil, stone, lime, can be equipped to these models: LG952H.
