Thông tin chi tiết sản phẩm:
Thanh toán:
|
Product Name: | Dump truck | Application: | Transportation |
---|---|---|---|
Horse power: | 371 hp | Drive type: | 6X4 |
Cabin: | HW7D cab | Cargo body(CBM): | 32.92 |
Điểm nổi bật: | construction dump trucks,sinotruk dump truck |

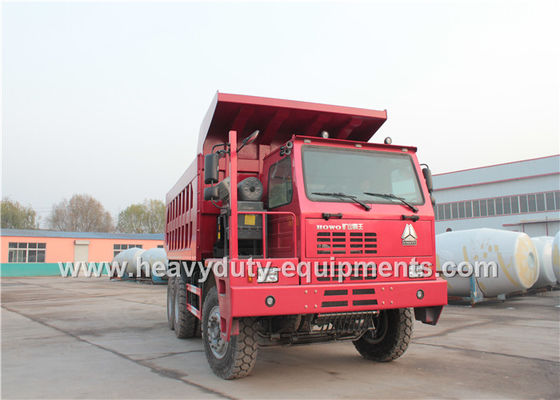

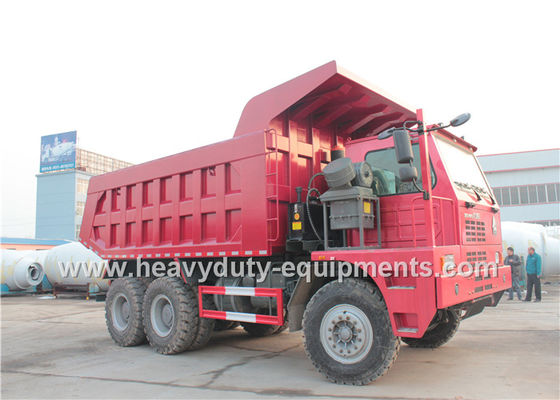

Sinotruk howo heavy duty loading mining dump truck for big rocks in wet mining road
Specifications:
Truck Model |
ZZ5707S3840AJ |
||||
Truck Brand |
SINOTRUK--HOWO MINE DUMP TRUCK |
||||
Driving Style |
Left hand driving |
||||
Dimension(L*W*H)(mm) |
8460*3200*3475 |
||||
Cargo body size (L*W*H, mm) |
5900*3100*1800 32.92m3 |
||||
Cargo thickness(mm) |
Bottom:14mm, Side:12mm,rear door: 12mm |
||||
Cargo material |
Manganese plate |
||||
Wheelbase |
3800+1350 |
||||
Approaching/Departure Angle(°) |
29/35.5 |
||||
Curb weight(kg) |
20000 |
||||
Loading Weight(kg) |
80000 |
||||
Engine |
Model |
WD615.47, water-cooled,four strokes,6 cylinders in line with |
|||
|
Fuel type |
Diesel |
|||
|
Horse Power, max(kw/rpm) |
371HP |
|||
|
Emission |
EUROII |
|||
Fuel tanker capacity(L) |
400 |
||||
Clutch |
430 diaphragm spring clutch Type A, hydraulic air booster |
||||
Transmission |
Model |
HW19710 10 forwards and 2 reverse |
|||
Brake system |
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|||
|
Auxiliary brake |
Engine exhaust brake |
|||
Steering system |
Model |
ZF8098hydraulic steering with power assistance |
|||
Front axle |
HF12 |
||||
Rear axle |
AC26reinforced wide cast steel, dual reduction, double tires drive axle(10.24) |
||||
Min. Ground Clearance |
380mm( Front Axle) |
||||
Clutch |
430diaphragm spring clutch A-type, hydraulic control and gas assistant |
||||
Color |
Like picture |
||||
Tyre |
14.00-25 big size mining use special tire |
||||
Electrical system |
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500kw |
|||
|
Starter |
7.5Kw/24V |
|||
Cab |
HW7D cab, (with air-condition), Unilateral cab |
Description:
The HOWO 70 mining dump truck, Mine Overlord, is developed by Sinotruk according to the features of the working conditions in the mines. It is suitable for the short-distance transport business in various wharves, steel mills, open pits, hydropower sites, and other places with harsh environment.
The Mine Overlord adopts a cab with high strength framework covered with protective materials. The cab is set with one side door. A high-power diesel engine is used. The heating device adopted makes it easier for the vehicle to start and provides heat to the cab in cold days. The cost-effective chassis brings customers with good economic efficiency and social effectiveness.
HF12 Front Axle Assembly
The HF12 fist-shaped front axle is a new assembly that is independently developed by Sinotruk for mine vehicles. It uses the integrally cast I-beam, Φ500×210 reinforced type brake, and other parts which are suitable for mine vehicles.
The first batch of sample of HF12 front axle achieves the desired objectives in the bench test. Compared with the HF9 front axle that is currently used by HOWO dump trucks, the HF12 front axle has higher carrying capacity and better braking performance. Its carrying capacity is increased by at least 1/3. Therefore, the HF12 front axle is more suitable for vehicles working in the mines with harsh working conditions.
AC26 Drive Axle
The AC26 integrally cast double reduction drive axle with wheel side reducer is independently developed by our company and is dedicated for mine vehicles. With reasonable design and advanced technology, the axle has high safety, strong carrying capacity, high strength, and high stiffness. It is able to adapt to the harsh working conditions in the mines.
Braking System and Cooling Device
Braking system: The front, middle, and rear axles all adopt 30inch dual-chamber brake compartment which has strong braking force.
