Automatic control Y-Ball Valve and Working pressure under 0.7 Mpa

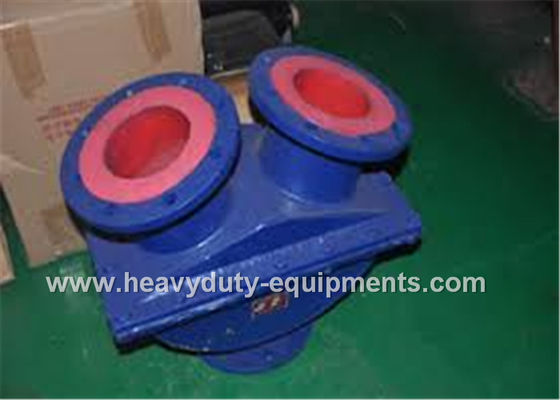

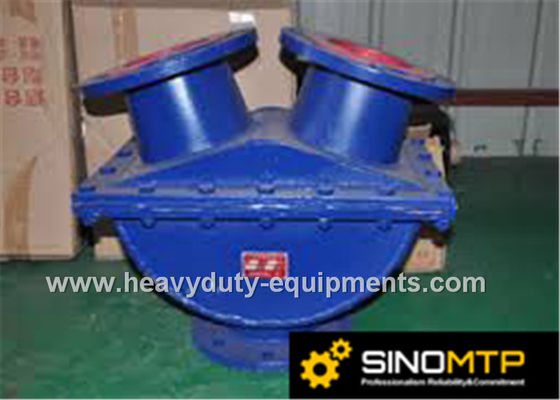

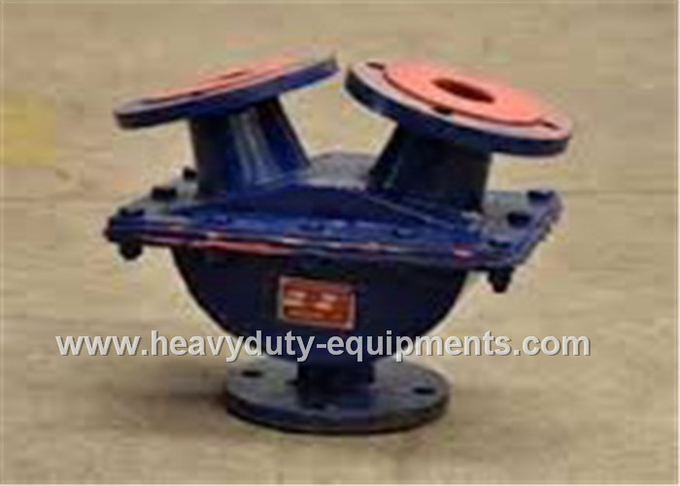

Hình ảnh lớn : Automatic control Y-Ball Valve and Working pressure under 0.7 Mpa

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	SINOMTP
Chứng nhận:	ISO/CCC
Model Number:	Y-Ball Valve

Thanh toán:

Minimum Order Quantity:	1
Giá bán:	Negotiation
Packaging Details:	Nude
Delivery Time:	30 work days
Supply Ability:	100 units/month

Tiếp xúc

Chi tiết sản phẩm

Type:	Y-Ball Valve	Nominal Pressure (MPa):	0.7
Diameter Range (mm):	DN65-500	Test Pressure (Mpa) seal:	1.0
Test Pressure(Mpa) intensity:	1.5	Test medium:	Water
Working pressure (Mpa):	< 1.0
Điểm nổi bật:	construction mining equipment , mining safety equipment

Automatic control Y-Ball Valve and Working pressure under 0.7 Mpa

Specification:

Product	Y-Ball Valve
Nominal Pressure (MPa)	0.7
Diameter Range (mm)	DN65-500
Test Pressure (Mpa) seal	1.0
Test Pressure(Mpa) intensity	1.5
Test medium	Water
Working pressure (Mpa)	< 1.0
Working medium	Slurry, slag , tailing, etc
Pressure (MPa)	≤0.7

Description:

Outstanding ball valve design of opening and closing, no blocking; creative opening and closing device control the valve by slurry pushing the ball.

Application:

SINOMTP Y-Ball valve is mainly used for pulp, slags, tailings, drainage system of spare pump and chemical corrosive substance delivery.

Advantages:

1. SINOMTP wear – resistant rubber as the liners of Y– ball valve with 128% wear resistance index

2. Service lige is 2-4 times longer than traditional valve.

3. The ball wrapped by SINOMTP wear – resistant rubber which can effectively open and close the two valve ports in Y – ball valve.

4. Slurry flow driving ball into a pipe orifice and close it; slurry pass by another pipe orifice. So it will not cause blockage.

Automatic control Y-Ball Valve and Working pressure under 0.7 Mpa
