| Type: | Wear-resistant slurry pump | Flow (m3/h): | 60~160 |
|---|---|---|---|
| Max. head (m): | 50 | Rotating speed(r/min): | 600~1600 |
| Max. rated power (kw): | 75 | Max. efficiency(%): | 57 |
| Điểm nổi bật: | mining industry equipment,mining safety equipment |
||

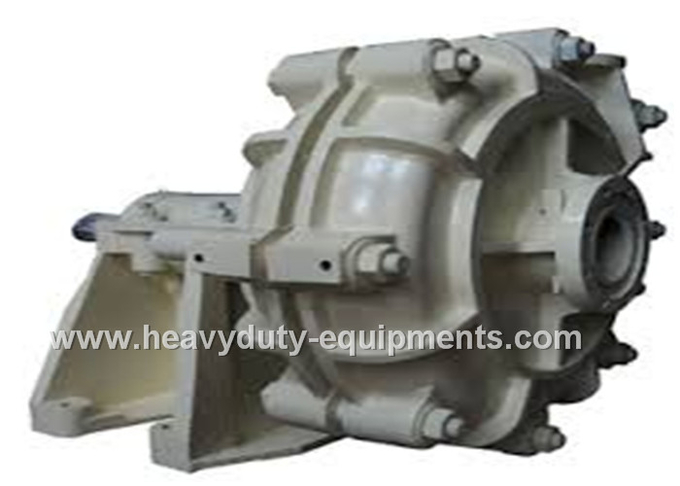

Convenient maintenance wear-resistant slurry pump with low noise
Specification:
| Product | Wear-resistant slurry pump |
| Model &Spec. | SINOMTP-100/100 |
| Flow (m3/h) | 60~160 |
| Max. head (m) | 50 |
| Rotating speed(r/min) | 600~1600 |
| Max. rated power (kw) | 75 |
| Max. efficiency(%) | 57 |
| Impeller diameter (mm) | 340 |
| Weight (kg) | 440 |
| Overall dimension (mm) | 999x648x660 |
| Flow(m3/h) | ≤1500 |
Description:
A slurry pump for conveying pulp with concentration below 65%
Slurry pump impeller and the casing are lined with high wear-resistant rubber ensuring that the pump body is not subject to wear.
Application:
SINOMTP wear-resistant slurry pump is suitable for processing the high abrasion slurry or the material containing solid particles.
Advantage:
1. Wear – resistant rubber as liners prolongs the service life by 2-4 times
2. Internal rubber liners with small specific gravity can effectively improve the impeller speed. Maximum flow rate than other slurry pump can improve the efficiency of the whole 10-20%, overall efficiency increased more than 30%.
3. Small specific gravity wet parts, convenient maintenance, low noise; reduce the number of repair personnel and the operational maintenance cost
4. Smooth wet parts make operation more stable
