Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Type: | Hydrocyclone | Spec.: | 500 |
|---|---|---|---|
| Processing capacity(m3/h): | 128~300 | Partition size (μm): | 50~115 |
| Diameter of overflow port(mm): | 130~220 | Diameter of dust-setting nozzle(mm): | 35~100 |
| Điểm nổi bật: | mining industry equipment,construction mining equipment |
||

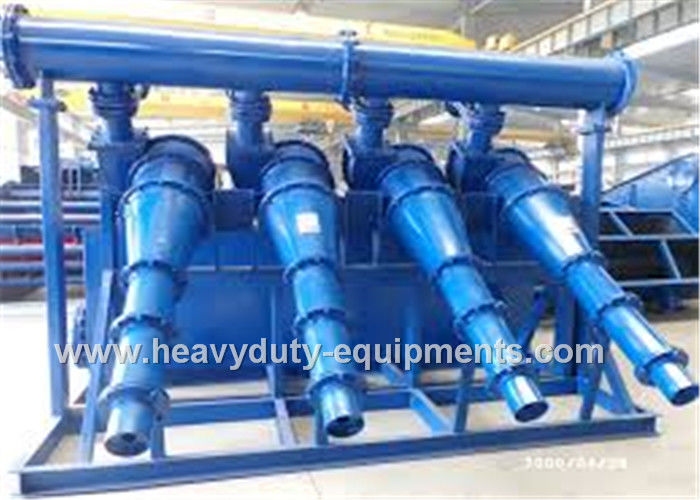

Improved classification efficiency Hydrocyclone with long service life
Specification:
| Product | Hydrocyclone |
| Model | SINOMTP-500 |
| Spec. | 500 |
| Processing capacity(m3/h) | 128~300 |
| Partition size (μm) | 50~115 |
| Diameter of overflow port(mm) | 130~220 |
| Diameter of dust-setting nozzle(mm) | 35~100 |
| Inlet pressure(MPa) | 0.06~0.15 |
| Capacity (m3/h) | ≤542 |
Description:
Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.
Application:
The working principle of SINOMTP hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement.
Advantage:
1. reduced the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone.
2. The rational length proportion of column and cone and reasonable insert depth of vortex finder
3. Wear – resistant rubber as liners prolongs the service life by 2-4 times
4. Unique involute feeding eliminating the disturbance, reduces wear and improves the classification efficiency
