Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Type: | disc feeder | Model: | YG800 |
|---|---|---|---|
| Disk Diameter (mm): | 800 | Rotating Speed of Disk (r/min): | 9 |
| Max. Feed Size (mm): | 30 | Feed Capacity (t/h): | 0~8. 0 |
| Motor Model: | Y80L- 4 | ||
| Điểm nổi bật: | mining industry equipment,construction mining equipment |
||

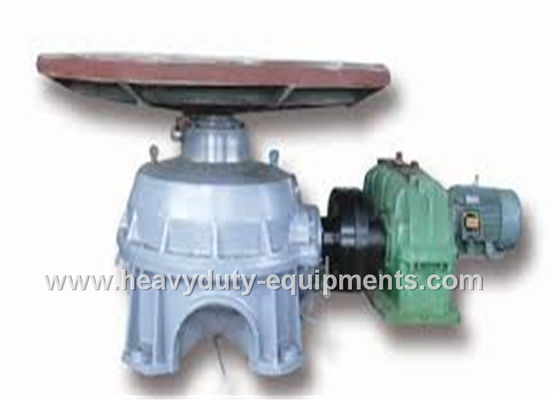

0.55Kw Motor Continuous Mining Equipment Rotary Disc Feeder 8.0T / H For Powder Material
Specification:
| Type | Hanged |
| Model | YG800 |
| Disk Diameter (mm) | 800 |
| Rotating Speed of Disk (r/min) | 9 |
| Max. Feed Size (mm) | 30 |
| Feed Capacity (t/h) | 0~8. 0 |
| Motor Model | Y80L- 4 |
| Motor Power (kW) | 0.55 |
| Weight (kg) | 195 |
| Capacity | 0~88.4t/h |
Description:
A traditional continuous feeding equipment for powder material.
1. Stable working and easy operation
2. Wide application, energy saving and efficient
3. Large bearing capacity and stable operation
4. Simple structure; even feeding; convenient maintenance.
5. The best choice for feeding process of powder materials.

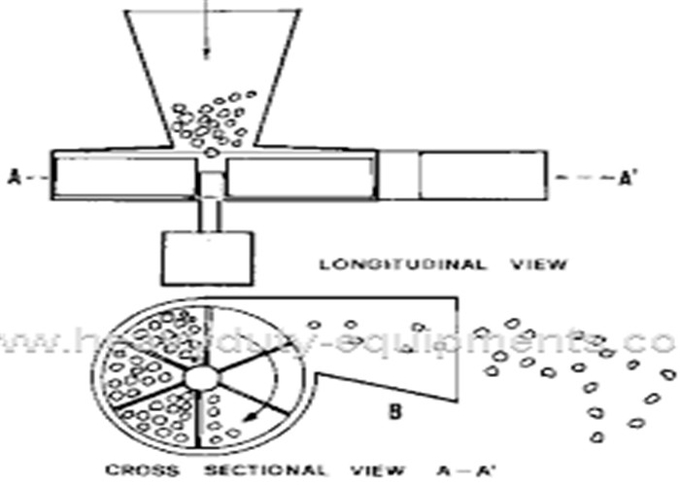

1. Bulky materials entering into the cylinder from the hopper accumulate by itself weight on the disk. The natural angle of material is controlled on the disk by adjusting the gap between the sleeve and disc.
2. When the disk rotates, the materials are scraped into accepted hopper by unloading knife, so with the continuous rotation of the disk, the materials are fed evenly. Adjust the gap between the unloading knife and the disk to control the feeding volume.
