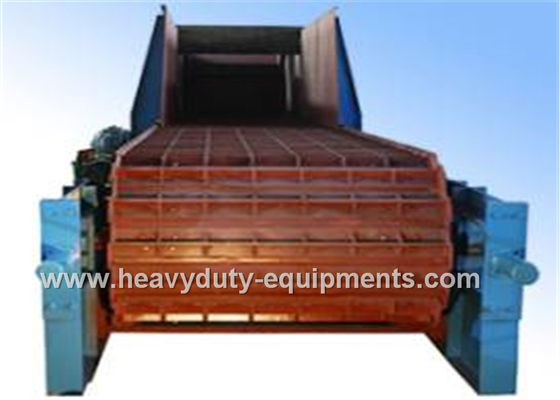

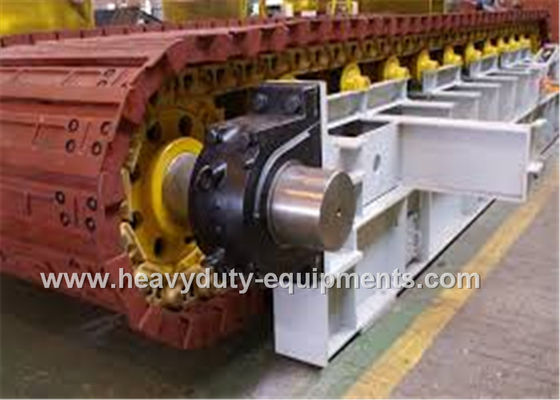

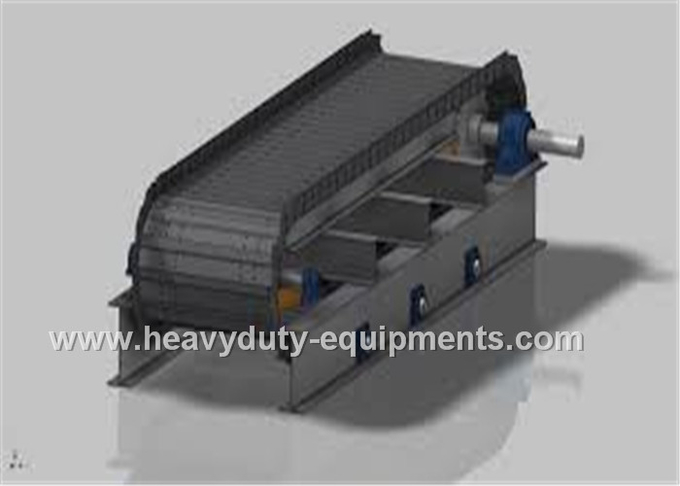

Large Speed Ratio Reciprocating Plate Feeder Impact Resistance 350mm Feed Size

Hình ảnh lớn : Large Speed Ratio Reciprocating Plate Feeder Impact Resistance 350mm Feed Size

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	SINOMTP
Chứng nhận:	ISO/CCC
Model Number:	GBH100-1.6

Thanh toán:

Minimum Order Quantity:	1
Giá bán:	Negotiation
Packaging Details:	Nude
Delivery Time:	30 work days
Supply Ability:	100 units/month

Tiếp xúc

Chi tiết sản phẩm

Type:	Plate Feeder	Model:	GBH100-1.6
Width (mm):	1000	Center Distance of Chain Wheel (mm):	1600
Speed (m/s):	≤0.15	Feed Size (mm):	≤350
Weight (kg):	3981
Điểm nổi bật:	construction mining equipment , mining safety equipment

Large Speed Ratio Reciprocating Plate Feeder Impact Resistance 350mm Feed Size

Specification:

Model		GBH100-1.6
Chain Plate	Width (mm)	1000
	Center Distance of Chain Wheel (mm)	1600
	Speed (m/s)	≤0.15
Feed Size (mm)		≤350
Capacity (m3/h)		22~131
Motor	Model	Y160M-6
	Power (kW)	75
Overall Dimension (LXWXH) (mm)		3240X3026X1235
Weight (kg)		3981
Capacity		15~217m3/h

Description:

A feeding machine with impact resistance and large convey capacity.

Advantage:

1. Compact structure, reliable quality

2. Wide application, high efficiency

3. Advanced technology

4. A reducer with large speed ratio, speed adjustment motor

5. Plate feeder can deliver bulk materials with particle size ≤160mm.

Product Application:

1. It is used to continuously and uniformly feed minerals to devices like crushing or conveying equipment in nonferrous metals, mining, cement, fertilizer, chemical, metallurgical, paper, mining, dressing, ingredients industries, etc.

2. It's good at feeding the bulk materials whose apparent density of a continuous uniformly no more than 12400kg/m3, block weight not exceeding 140kg, temperature is not higher than 140℃.

Large Speed Ratio Reciprocating Plate Feeder Impact Resistance 350mm Feed Size
