CG600X500 Chute Feeder with 4kw motor power to convey mineral lump

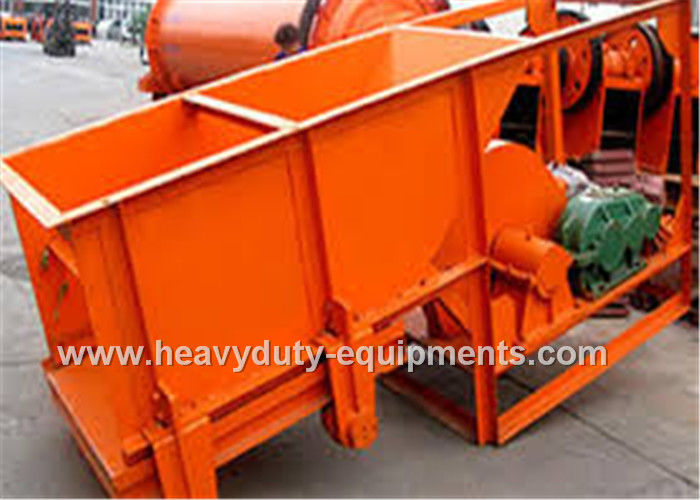

: Hình ảnh lớn : CG600X500 Chute Feeder with 4kw motor power to convey mineral lump

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	SINOMTP
Chứng nhận:	ISO/CCC
Model Number:	CG600X500

Thanh toán:

Minimum Order Quantity:	1
Giá bán:	Negotiation
Packaging Details:	Nude
Delivery Time:	30 work days
Supply Ability:	100 units/month

Tiếp xúc

Chi tiết sản phẩm

Type:	Chute Feeder	Model:	CG600X500
Outlet Dimension (W X H) (mm):	600 X500	Max. Feed Size (mm):	200
Feed Capacity (t/h):	10~50	Motor Model:	Y112M- 4
Motor Power (kW):	4
Điểm nổi bật:	construction mining equipment , mining safety equipment

CG600X500 Chute Feeder with 4kw motor power to convey mineral lump

Specification:

Model	CG600X500
Outlet Dimension (W X H) (mm)	600 X500
Max. Feed Size (mm)	200
Feed Capacity (t/h)	10~50
Motor Model	Y112M- 4
Motor Power (kW)	4
Weight (kg)	1045
Capacity	10~90t/h

Description:

A periodic and reciprocating feeding machine for large bulk materials.

Advantages:

1.Simple structure, even feeding, good continues performance.

2.Change and control flow and feeding volume at any time.

3.Stable transmission, high efficiency.

4.Compact structure, reasonable design.

5.Excellent quality, wide application.

Work Principle

1.The machine is usually installed underneath the discharging opening of ore bin. Minerals fall on the bushing. The bushing is located at the chute bottom, configured on idler wheel and via eccentric device connected with reducer which is linked to electric motor by coupler.

2. When it works, electric motor drives reducer via coupler; eccentric disk and drain cap which is situated between chute frame bottom and roller begin to do reciprocal and linear motion so as to uniformly feed minerals.

CG600X500 Chute Feeder with 4kw motor power to convey mineral lump
