Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Type: | Gravity Separation Equipment Spiral Chute | Model: | BLL-1200 |
|---|---|---|---|
| Outside Diameter (mm): | 1200 | Screw Pitch (mm): | 900, 720, 540 |
| Pitch Diameter Ratio: | 0.75, 0.6, 0.45 | Lateral Dip Angle (degree): | 9° |
| Max. Screw Numbers Per Set: | 4 | Feed Size (mm): | 0.3~0.03 |
| Điểm nổi bật: | construction mining equipment,mining safety equipment |
||

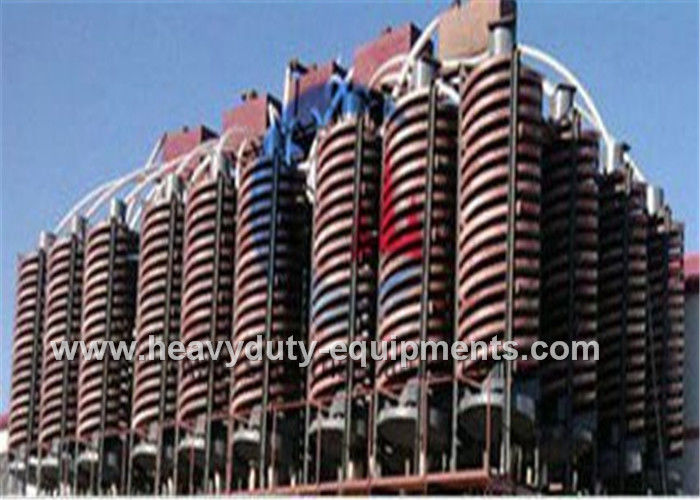

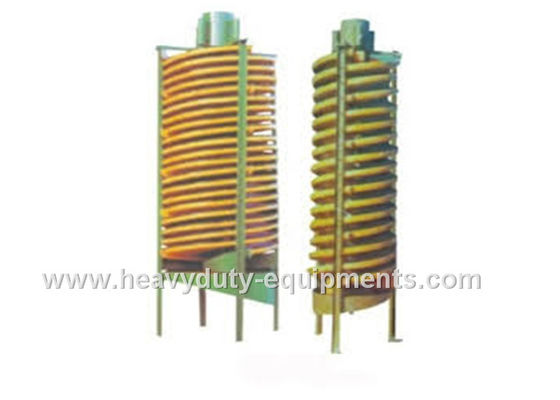

Sinomtp Gravity Separation Equipment Spiral Chute 900, 720, 540mm Screw Pitch
Specification:
| Model | BLL-1200 | |
| Outside Diameter (mm) | 1200 | |
| Screw Pitch (mm) | 900, 720, 540 | |
| Pitch Diameter Ratio | 0.75, 0.6, 0.45 | |
| Lateral Dip Angle (degree) | 9° | |
| Max. Screw Numbers Per Set | 4 | |
| Feed Size (mm) | 0.3~0.03 | |
| Feed Density (%) | 25 ~55 | |
| Capacity (t/h) | 4~6 | |
| Overall Dimension |
Length (mm) | 1360 |
| Width (mm) | 1360 | |
| Height (mm) | 5230 | |
| Weight (kg) | 700/650/600 | |
Description:
A gravity separation equipment of separation different weight mineral by inertial centrifugal force pulp produced in helix turning motion.There are 3 kinds of chute for user to choose, glass steel chute, wear-resistant rubber liner, polyurethane rubber liner.
Work Principle:
1.Ore pulps are uniformly fed into machine and form different layers as they pass across chute. Heavy minerals precipitate to bottom and are moved toward inner edge by the comprehensive action of various forces; light minerals are moved toward outer inner due to the speedy rotation.
2.Spiral chute is suitable for treatment of 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer and gold ore.
