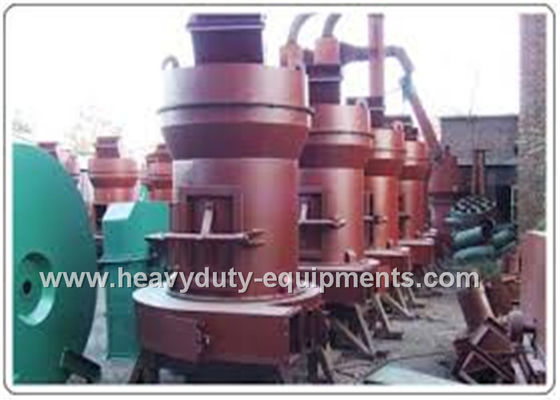

160R / Min Raymond Grinding Industrial Mining Equipment Mill With A Production System Independently

Hình ảnh lớn : 160R / Min Raymond Grinding Industrial Mining Equipment Mill With A Production System Independently

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	SINOMTP
Chứng nhận:	ISO/CCC
Model Number:	MTP75

Thanh toán:

Minimum Order Quantity:	1
Giá bán:	Negotiation
Packaging Details:	Nude
Delivery Time:	30 work days
Supply Ability:	100 units/month

Tiếp xúc

Chi tiết sản phẩm

Type:	Raymond Mill	Model:	MTP75
Max. Feed Size (mm):	<15	Finished Product Size (mm):	0.613-0.033
Production Capacity (t/d):	1-3	Rotating Speed of Main Motor (r/min):	160
Main Motor Power (kw):	18.5	Overall Dimension(m) (Length × Width × Height):	4.3×3.5×5.1
Điểm nổi bật:	mining industry equipment , construction mining equipment

160R / Min Raymond Grinding Industrial Mining Equipment Mill With A Production System Independently

Specification:

Type	Raymond Mill
Model	MTP75
Max. Feed Size (mm)	<15
Finished Product Size (mm)	0.613-0.033
Production Capacity (t/d)	1-3
Rotating Speed of Main Motor (r/min)	160
Main Motor Power (kw)	18.5
Milling Ring Diameter (mm)	Inner Diameter 780
Milling Ring Height (mm)	150
Milling Roller Diameter (mm)	260
Milling Roller Height (mm)	150
Milling Roller Qty.	3
Overall Dimension(m) (Length × Width × Height)	4.3×3.5×5.1

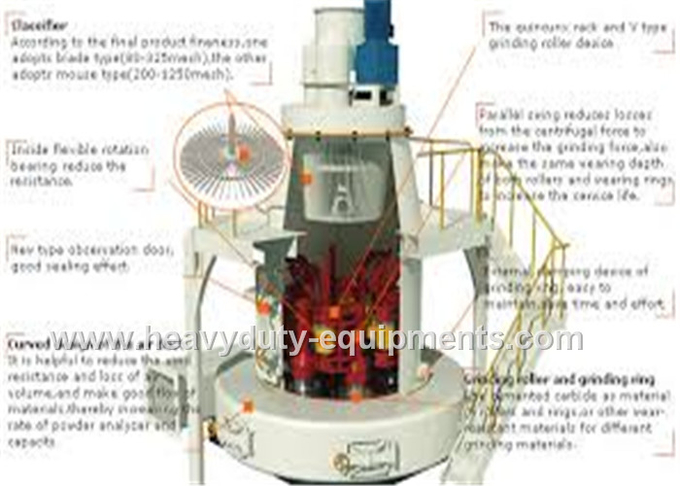

Product Introduction:

Raymond Mill has a strong performance of becoming a complete set with a production system independently.

Product Improvement:

All important parts of raymond mill are made of high quality steel, and all wear-resistant parts are made of high-performance wearresistant materials. The whole machine has high wear resistance and reliable operation..

Advantages:

Force produced from milling roller connected by pull rod and high pressure spring can avoid damages caused by bulk materials to the equipment. Resilient coupling between main engine and the separator can reduce vibration and noise and improve service life of the equipment.
Because of connecting crushing, drying, grinding, classifying and transmission together with simple system and compact layout, it covers about 50% of the area of the ball mill system and can be outdoor arrangement, which can reduce the investment cost a lot.
Milling roller devices adopt superimposed multistage seal with excellent seal performance.
Unique air circulation system with advanced dust remover carries the environmental protection concept through to the end.
Impeller devices with high density and high precision increase more than 50% of finished product yield under the same power. Efficient and energy-saving centrifugal induced draft fans improve the efficiency of induced draft fans greatly. Convenient impeller adjusting devices improve the precision of the finished product.

160R / Min Raymond Grinding Industrial Mining Equipment Mill With A Production System Independently
