| Model: | XG6201 | Engine model: | Shangchai D6114 |
|---|---|---|---|
| Operating Weight: | 20000 | Drum (D×W): | optional |
| Min. Ground Clearance: | optional | Overall Dimensions (L×W×H): | optional |
| Điểm nổi bật: | road construction machinery,road machinery equipment |
||

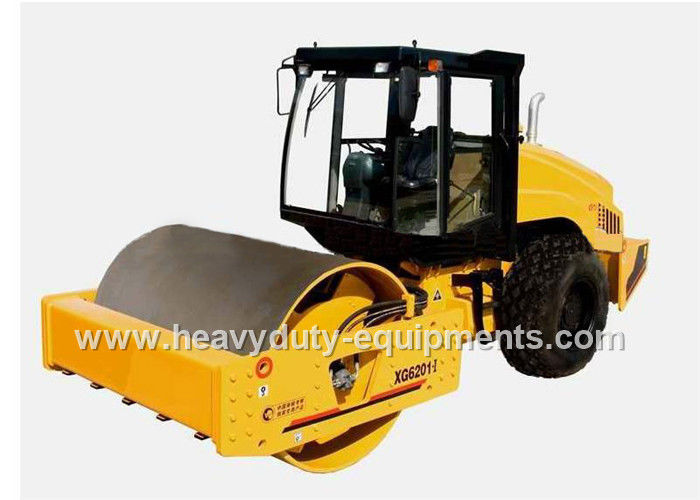

Hydraulic Vibratory Road Roller XG6201 having Shangchai D6114 engine
Specification:
| Description | Unit | XG6201 |
| Operating Weight | kg | 20000 |
| Static Linear Load of Drum | N/cm | 552 |
| Vibration Frequency | Hz | 28 |
| Theoretical Amplitude | mm | 1.8/0.9 |
| Centrifugal Force | kN | 354/211 |
| Drum Weight | kg | 12000 |
| Min. Turning Radius | mm | - |
| Max. Gradeability | % | - |
| Drum (D×W) | mm | - |
| Min. Ground Clearance | mm | - |
| Overall Dimensions (L×W×H) | mm | - |
Description:
Our hydraulic road roller is a kind of super heavy, hydrostatic transmission, double drive vibratory road roller. It is designed and built for the construction of highways, railways, airports and hydraulic facilities, especially for the compaction of base and refill for various construction projects.
Features of XGMA Hydraulic Vibratory Road Roller
1. The drive pump, vibration pump and steering pump are combined in series and connect with diesel engine directly, thus making the machine more compact and facilitating the maintenance.
2. The spacious, comfortable, low-noise cab features thermal insulation, vibration reduction and provides virtually unobstructed all-around visibility.
3. The three-stage braking system is highly safe and reliable.
4. Optional pad-foot drum and air-conditioner to better suit customer's needs.
