Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Model: | XG6121 | Engine model: | Cummins 4BTA3.9 |
|---|---|---|---|
| Operating Weight: | 12100 | Centrifugal Force: | 247/127 |
| Drum (D×W): | φ1550×2130 | Drum Linear Static Load: | 333 |
| Điểm nổi bật: | road machinery equipment,road construction safety equipment |
||
Hydraulic Vibratory Road Roller XG6121 suited for compaction operations of road, railway, dam
Specification:
| Description | Unit | XG6121 | |
| Operating Weight | kg | 12100 | |
| Static Linear Load of Drum | N/cm | 333 | |
| Vibration Frequency | Hz | 30 | |
| Theoretical Amplitude | mm | 1.7/0.85 | |
| Centrifugal Force | kN | 247/127 | |
| Drum Weight | kg | 7100 | |
| Drum Linear Static Load | N/cm | 333 | |
| Min. Turning Radius | mm | 6300 | |
| Max. Gradeability | % | 50 | |
| Drum (D×W) | mm | φ1550×2130 | |
| Min. Ground Clearance | mm | 295 | |
| Overall Dimensions (L×W×H) | mm | ||
| Engine | Model | Cummins 6BT5.9 | |
| Rated Power | kW | 112 | |
| Rated Speed | r/min | 2400 | |
Description:
Road rollers of this series are hydrostatic transmission double drive vibratory road rollers. They are ideally suited for compaction operations of road, railway, airport, dam and various earthwork foundations.
Features of XGMA Hydraulic Vibratory Road Roller
Advantage:

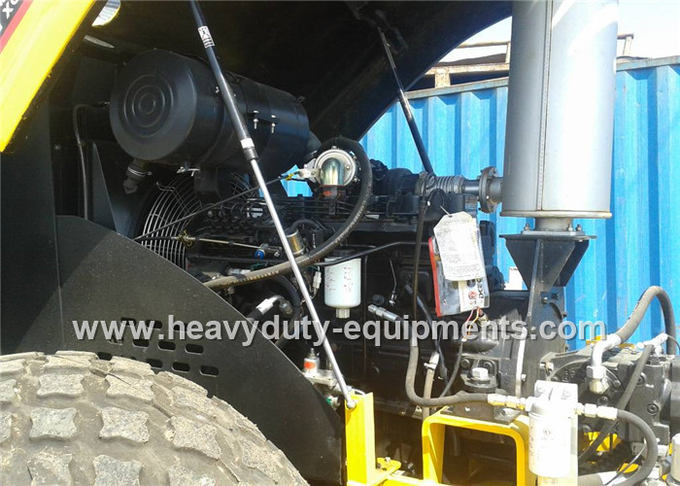

1. Adopt Dongfeng Cummins turbocharged diesel engine, with the features of being reliable, environment friendly and energy-saving.
2. The spacious and quiet cab provides excellent all-around visibility and features thermal insulation, vibration reduction.
3. Safe and reliable three-stage braking system.
4. Pad-foot drum and air-conditioner are available to suit customer's specific needs.
