Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Model: | RS8200 | Engine: | WP6G175E201 |
|---|---|---|---|
| Operating wight (kg): | 20000 | Centrifugal force (kN): | 380/210 |
| Static linear load (N/cm): | 455 | Transmission: | Hachi gearbox |
| Điểm nổi bật: | road construction machinery,road machinery equipment |
||

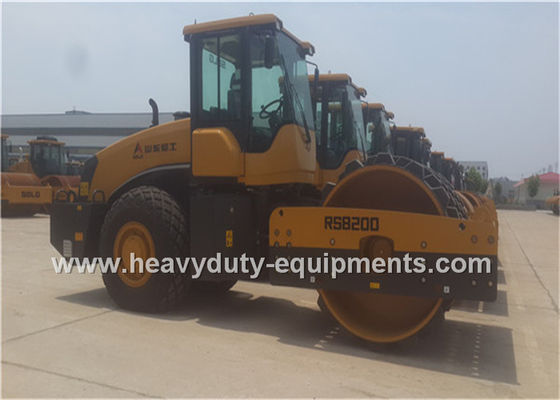

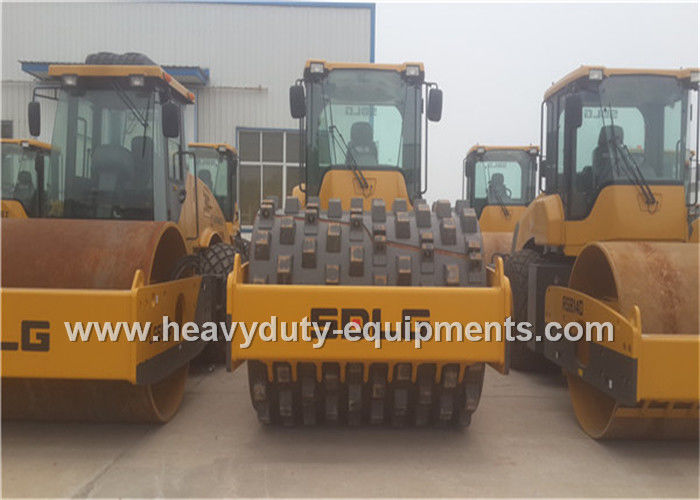

SDLG mechanical single drum vibratory road roller RS8200 with Weichai Deutz engine ,sheep foot or padfoot
Specification:
| Model | RS8200 | Transmission | Hachi gearbox |
| Engine |
Weichai Deutz Engine WP6G175E201 |
Working type | Single steel drum vibratory |
| Drive system | Rear wheel mechanical | Cooling/Heating system | Heater |
| Cabin | Standard |
Vibranting Frequency (Hz) |
30 Hz |
| Tyre | Water filling |
Vibrate range (mm) |
2.0/1.0 mm |
| Centrifugal force (kN) | 380/210 |
Operating wight (kg) |
20000 |
| Static linear load (N/cm) | 455 |
Dimension (mm) |
6370x2320x3185 |
Description:
This machine is excellent performance and fashionable shape and is industrial leading in compacting, driving and operating.
Advantage:
1. Vibratory pump, vibratory motor: the PERMCO vibratory pump and vibratory motor applied affords stable quality and reliable performance.
2. Frame: the frame is welded with quality sheet metals, featuring reasonable structure, uniformly-distributed load and high loading capacity.
3. Articulation of front & rear frames: the front frame is articulated with the rear frame by a slewing ball bearing, ensuring easy disassembly & assembly, maintenance-free and reliable performance.
4. Exciting mechanism: the exciting mechanism patented by SDLG ensures high consistency of amplitude and frequency on both sides of vibratory drum and a good compacting effect.
Application:
With industrial leading level in compacting for road.
