| Model: | G9220 | Engine: | DDE BF6M1013EC |
|---|---|---|---|
| Dimension: | 8975x2710x3240 | Brake system: | Chain transmission drum brake |
| Hydraulic system: | Mechanical operation | operating weight (kg): | 16500 |
| Điểm nổi bật: | road construction machinery,road construction safety equipment |
||

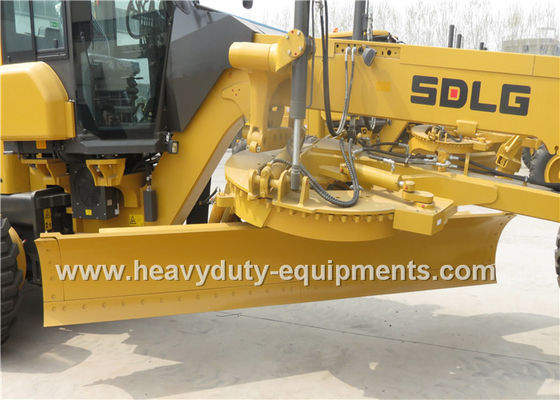

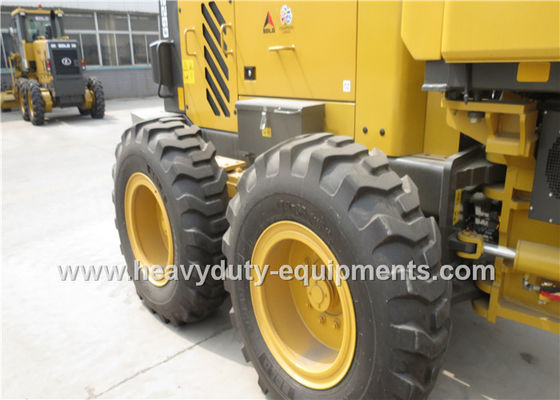

Mechanical Road Construction Equipment SDLG Motor Grader Front Blade With FOPS / ROPS Cab
Specification:
| Model | G9220 | Brake system | Chain transmission drum brake |
| Engine | DDE | Driving type | Rear axle drive |
| Rated Power | 158kW 2200r/min | Dimension (LxWxH)(mm) | 8975x2710x3240 |
| Transmission type | ZF6WG200 | Standard operating weight (kg) | 16500 |
| Drive Axle | Meichi |
Blade specification (mm) |
4267x635x22 |
| Hydraulic system | Mechanical operation | Max. speed (km/h) | 39 |
Description:
Frame structure welded by box beam is of integrated modularized design; the rear agitator and other accessories can be accessed conveniently for removal and installation, and are independent of the transmission system such that the impact load will only be transferred to the rear frame, ensuring high reliability.
Advantages:
1.The overall electrical system applies centralized control, and 3rd-level alarm electronic monitoring system and digitized stepping instrument panel ensure good human-machine interaction and convenient inspection and maintenance.

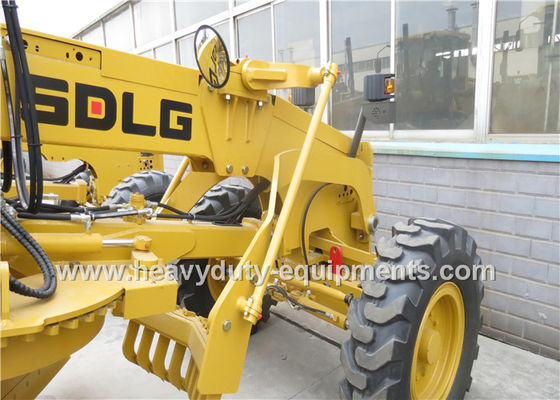

2.Auxiliary implements such as front dozer blade, front agitator, intermediate agitator, rear agitator and rear scarification rake are optionally available, and blade floating and automatic leveling system module can be installed.
