Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Model: | CAT323D2L | Engine: | Cat C7.1 |
|---|---|---|---|
| Displacement: | 7.01L | Min ground Clearance: | 405mm |
| Track gauge: | 2380mm | Travel hydraulic circuits: | 35Mpa |
| Điểm nổi bật: | hydraulic shovel excavator,hydraulic system excavator |
||

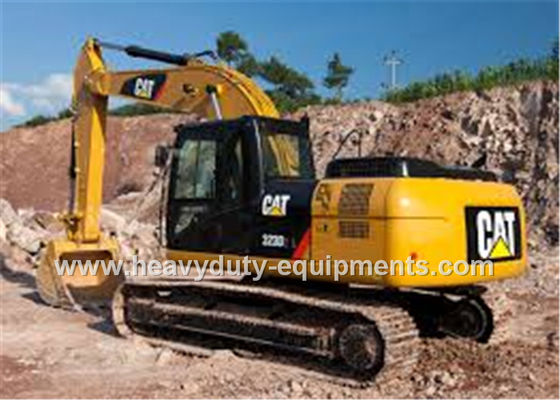

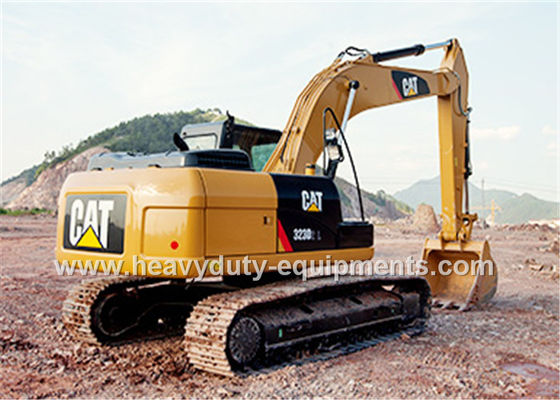

midsize excavator, CAT brand with 1.3m³ bucket capacity, 323D2L, 116KW net power
Specification:
| Model | 323D2L | Engine | CAT C7.1 |
| Displacement (L) | 7.01 | Emission | EU Stage II, and China Stage II Nonroad equivalent emission standards. |
| Engine power (kw) | 118 |
Operating weight (kg) |
30305.0 |
|
Min ground Clearance (mm) |
450 | Track gauge (mm) | 2380 |
|
Travel hydraulic circuits (Mpa) |
35 |
maximum tractive force (kN) |
205 |
| Grade ability (%) | 70/35° | rotary torque (kN•m) | 61.8 |
|
bucket arm length (mm) |
2900 | Boom length (mm) | 5700 |
|
Bucket capacity (m³) |
1.3 |
Max digging depth (mm) |
6720 |
|
Max digging height (mm) |
9490 |
Max digging radius (mm) |
9860 |
Compared to 323D L D Series monitor, the new monitor on 323D2 L has a 40% larger screen, with a four times increased resolution display.
Advantages:
1.The ergonomically designed operator station is spacious, quiet, and comfortable, assuring high productivity during a long work day.
2.Monitor is equipped with warning lamp and buzzer for critical engine oil pressure, coolant temperature and oil temperature.
3.Information language capability increased from 28 to 42 languages to support today’s diverse workforce.
4.The mechanical or air suspension seats provide a variety of adjustments to accommodate a wide range of operators.
5.Low-effort pilot-operated joystick controls are designed to match your natural wrist and arm position for maximum comfort and minimum fatigue.
Application:
CAT excavator with mature technology, good using in road constructions.
